Cars

E Revolution Co Ltd is moving forward with technology & has a range of Electric vehicle components available in Thailand.  If you want to build your own supercar or just make a small EV as a project, we can help.  We use the PayPal secure online payment system & deliver to your door !


Powered by a Golden Motor 5 KW  High Power BLDC Motor

Model: HPM5000A

Features :

Compact design, Water resistent, Stainless Steel Shaft, Self Cooling Fan

  1. Voltage: 48V / 72V / 96V / 120V
  2. Rated Power: 3KW - 7.5KW
  3. Efficiency: 91%
  4. Phase Resistance (Milliohm): 6.2 / 48V ; 12.0 / 72V ; 36.0 / 120V
  5. Phase Induction(100KHZ): 68uH / 48V ; 154uH / 72V ; 504uH / 120v
  6. Speed: 2000-6000rpm (customizable)
  7. Weight: 11Kgs
  8. Casing: Aluminium
  9. Length (height): 126mm Diameter: 206mm
  10. Keyway size: 5mm(W) x 43mm(L) x 19mm(D:22.3mm

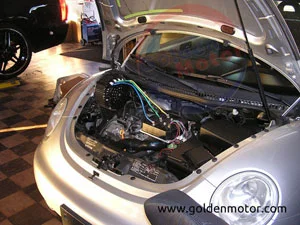

Applications : Electric car, electric motorcycle, electric tricycle, electric golf carts, fork lift, electric boats

5 KW Fan Cooled

Powered by a Golden Motor 10 KW  High Power BLDC Motor Air Cooled

Model: HPM-10KA

  1. 48 - 72 - 96 - 120 volts
  2. Rated Power 8 -20 KW
  3. Efficiency: 91%
  4. Phase Resistance (Milliohm):               3.1 - 48V                                             6.0 - 72V                                        18.0 - 120V
  5. Phase Induction (100KHZ)             34uH - 48V                                    77uH - 72V                                     252uH - 120v
  6. Speed: 2000-6000rpm (customizable)
  7. Weight 17 Kgs
  8. Casing: Aluminium
  9. Length (height): 170mm Diameter: 206mm
  10. Keyway size: 6.4mm(W) x 45mm(L) x 21.7mm(D:25.4mm
10 KW Fan Cooled


High Power 20 KW BLDC Motor

Model: HPM-20KW

  1. Voltage: 72 - 96 - 120 volts
  2. Rated power: 20 - 25 KW
  3. Peak power: 50 KW
  4. Speed: 3200-6000rpm
  5. Rated torque: 80 Nm
  6. Peak torque: 160 Nm
  7.  Efficiency: >90%
  8. Dimensions: 30x30x25cm
  9. Weight: 39kgs
  10. Cooling: liquid cooling
20 KW Motor
