Bafang Motors

Bafang Motors www.electricbikesthailand.com

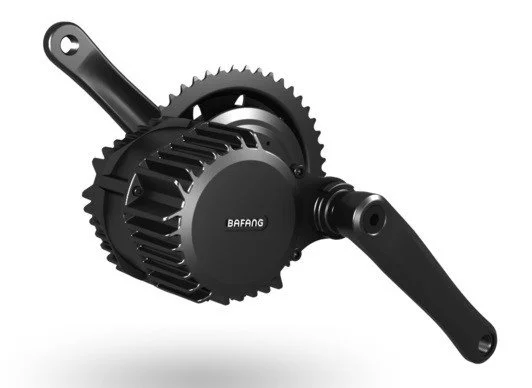

BAFANG BBS 02 Motors

With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, has a rated power of 500W, a reduction ratio of 1: 21.9 and a maximum torque of 100N.m, will provide the rider with explosive force when starting the system. Strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes, commuter bikes and mountain bikes. This motor is black

Bafang BBS02

SPECIFICATIONS / Core Data

  • Position :                        Mid Motor
  • Construction :                Gear Motor
  • Nominal Voltage :`         36 / 48 V
  • Rated Power :                500 W
  • RPM :                              110-130
  • Max Torque :                  100 N.m
  • Efficiency :                      >80 %
  • PAS SENSOR :               Speed sensor
  • Shaft Standard :             JIS
  • Weight :                          4.3 kg

Further Specifications

  • Cadence (Pulses/Cycle):  1
  • Reduction Ratio :              1:21.9
  • Magnet Poles :                  16
  • Noise :                               < 55 dB
  • Hall Sensor :                      With
  • Connector :                        Waterproof

Tests & Certifications

  • IP-Code IP 65
  • Certifications CE / ROHS
  • EN 14764

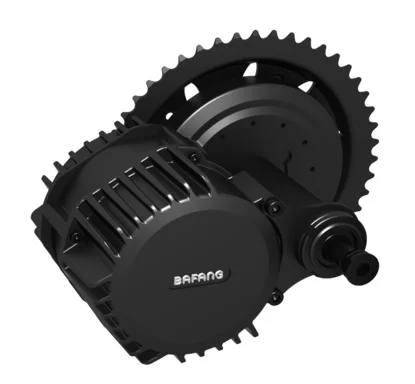

BBSHD Motors

With an integrated speed sensor, this mid-drive motor, which is compatible with a 68-120mm bottom bracket, has a rated power of 750-1000W, a reduction ratio of 1: 21.9 and a maximum torque of 160 N.m, will provide the rider with great explosive force when starting the system. Highly strong and efficient, this motor greatly enhances riding joy and is suitable for mountain bikes and sand bikes which are the favorites of riders who love challenges as well as transport bikes. This motor is black

Bafang BBSHD

SPECIFICATIONS / Core Data

  • Position :                        Mid Motor
  • Construction :                Gear Motor
  • Nominal Voltage :`         48 V
  • Rated Power :                1000 W
  • RPM :                              110-130
  • Max Torque :                  100 N.m
  • Efficiency :                      >85 %
  • PAS SENSOR :               Speed sensor
  • Shaft Standard :             JIS
  • Weight :                          4.8 kg

Further Specifications

  • Cadence (Pulses/Cycle):  N/A
  • Reduction Ratio :              1:21.9
  • Magnet Poles :                  8
  • Noise :                               < 55 dB
  • Hall Sensor :                      With
  • Connector :                        Waterproof

Tests & Certifications

  • IP-Code IP 65
  • Certifications CE / UL / ROHS
  • EN 14764

BBS02 Dimensions

Bafang BBS02 Dimensions www.electricbikesthailand.com

BBSHD Dimensions

bafang BBSHD dimensions www.electricbikesthailand.com

Choose your Battery here  (page coming soon)
