Golden Motor Controllers
We have 2 types of Controllers
Sine wave inverters produce an actual sine wave. Sine wave inverters are more expensive than the square wave and the modified sine wave inverters. However, they are ideal for electric devices such as motors. Chargers are also designed to use a natural sine waveform.
Square wave inverters can be used where the load on the UPS is going to be mostly resistive loads such as heaters, incandescent lamps, etc. Using square wave inverters on motors can produce harmonic distortion / humming. This leads to reduced efficiency and loss of power.
200-1000W BLDC Motor Controller
Model:BAC-281P
Cruise Speed Controller-New Generation Ebike Controller
Multi-Voltage of 24V/36V/48V/60V(MAX)
Continuous current: 25A
Max current: 50A
Rated output power:200-1000W
Weight: 0.5kgs/unit
Programmable via PC USB port with optional interface
2000W BLDC Motor Controller
Model: BAC-0501
Cruise/Regen Controller, Programmable !
Multi-Voltage of 24V/36V/48V/60V(MAX)
Continuous current: 50A
Max current: 100A
Rated output power: 2000W
Weight: 1.5kgs/unit
PC Programmable
Regen Braking
3KW BLDC Motor Controller
Model: VEC 200
Voltage: 48V/72V/96V
Rated continuous current:80A
Maximum phase current: 200A
Motor control mode: FOC
Driving method: Direct torque control
Dimensions: 170mm(L) x 120mm(W) x 50mm(H)
Weight:1.9kg
5KW BLDC Motor Controller
Model: VEC 300
Voltage: 48V/72V/96V
Rated DC BUS current: 30A¡«200A
Rated output power: 1000¡«10000W
Motor control mode: FOC
Quiescent operation
current:20~40mA
Speed limit: Controlled by motor and configuration
Driving method:Direct torque control
Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg
10KW BLDC Motor Controller
Model: VEC 500
Voltage: 48V/72V/96V
Rated DC BUS current:30A¡«200A
Rated output power:1000¡«10000W
Motor control mode: FOC
Quiescent operation
current:20~40mA
Speed limit: Controlled by motor and configuration
Driving method: Direct torque control
Keyway size: 190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg

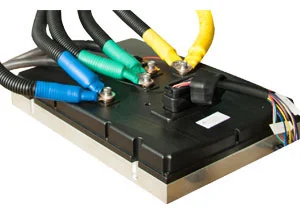

20KW BLDC Motor Controller
Model: VEC 700
Voltage: 48V / 72V / 96V
Rated continuous current: 400A
Maximum phase current: 700A
Motor control mode: FOC
Driving method: Direct torque control
Dimensions: 330mm(L) x 225mm(W) x 70mm(H)
Weight:6.5kg
Model: HPC300 Series -- Brushless Motor Controller
Voltage Ranges: 48V(~60V) / 72V(~90V) / 96V(~140V)
Rated Current (Max): 360A / 300A / 240A
Weight: 2.2Kgs
Diimensions: 192*146*77mm
Features:
Programmable via USB port
Fuse breaker,
Regen Braking
Temperature sensoring

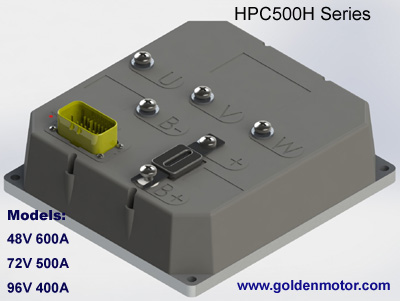

Model: HPC500 Series -- Brushless Motor Controller
Voltage Ranges: 48V(~60V) / 72V(~90V) / 96V(~140V)
Rated Current (Max): 600A / 500A / 400A
Weight: 2.9Kgs
Dimensions: 192*208*77mm
Features:
Programmable via USB port
Fuse breaker
Regen Braking
Temperature sensoring

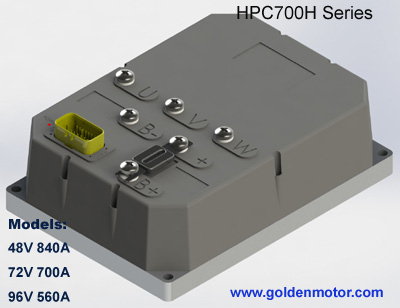

Model: HPC700 Series -- Brushless Motor Controller
Voltage Ranges: 48V(~60V) / 72V(~90V) / 96V(~140V)
Rated Current (Max): 840A/700A/560A
Weight: 5.7Kgs
Dimensions: 200x276x85mm
Features:
Programmable via USB port
Fuse breaker
Regen Braking,
Temperature sensoring
